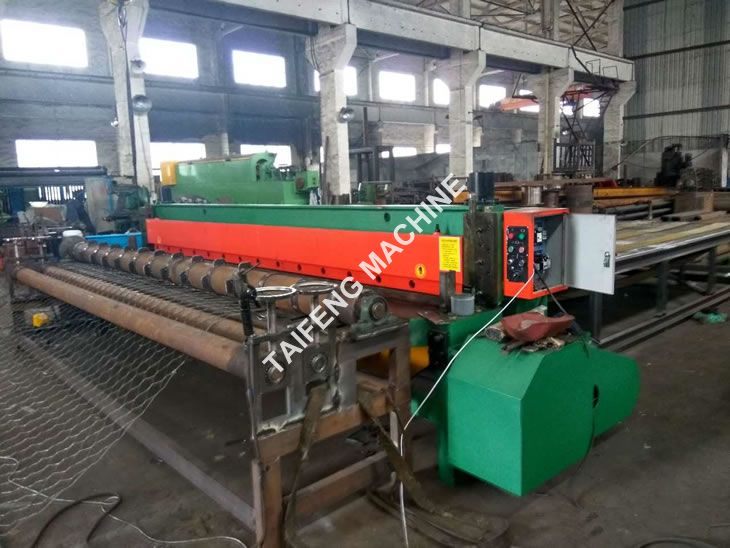

Automatic Hexagonal Wire Mesh Cutting Machine For Wire Netting Sheet
Gabion mesh shearing machine, also named gabion mesh cutting machine, is normally used to cut off the gabion mesh to reinforce the border.
| Model | TF-JW-4*2500 | TF-JW-3*4100 | |
| Wire diameter | 4mm | 4mm | |
| Mesh shearing width | 2500mm | 4100mm | |
| Shearing strength | 450N/mm2 | 450N/mm2 | |
| Shearing angle | 1°30' | 1°30' | |
| Max. distance of backaguage | 550mm | ||
| Stroke number per minute | 22 | 20 | |
| Blade length | 2600mm | 4400mm | |
| Height of working table above the floor | 800mm | 800mm | |
| Main motor | Model | Y132S-4 | Y132S-4 |
| Power | 5.5KW | 5.5KW | |
| Revolution | 1500r/min | 1500r/min | |
| Motor for backgauge | Model | Y80-6 | Y80-6 |
| Power | 0.55KW | 0.55KW | |
| Revolution | 910r/min | 910r/min | |
| Oil pump | Model | PLV-14 | PLV-14 |
| Flow | 14 ml/r | 14 ml/r | |
| Pressure | 21MPa | 21MPa | |
| Overall size | Length | 3240mm | 5040mm |
| Width | 1300mm | 1300mm | |
| Height | 1435mm | 1435mm | |
| Machine weight | 3200Kg | 4680Kg | |
| Contents of oil tank | 90L | 90L | |
