Expanded metal mesh production process：
1. Sheets or coilsor metal are fed into the expanding mesh machine. A little metal can create alot of mesh, adding value and saving resources and money.
2. Each machine is fitted with a unique "Knife", dedicatedto a particular pattern. New patterns and knives can be created in-house forspecific applications.
3. The machines are then programmed or manually controlled to ensurethe metal is expanded to the exact specification. Rigorous quality checks arecarried out to ensure product consistency throughout the expanding process

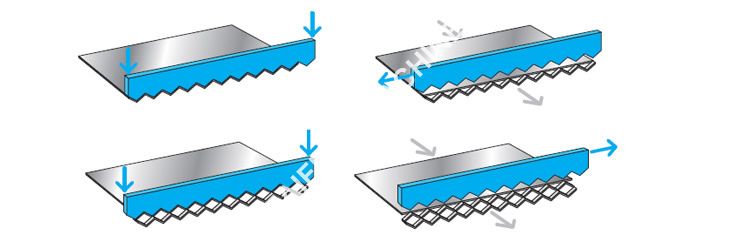

4. Using the unique shearing and streching process means very littlewaste is created. the metal is sheared and then streched in a single processcreating the apertures and therefore expanding the metal. The mesh is theneither cut into sheets or wound onto coils ready for shipping or furtherprocessing
2;The (expanded mesh machinery; expanded metallath machine) can process cold-rolled steel, aluminum materialto expanded mesh with hexagonal, diamond, half round, etc. which are used forbuilding, hardware, machine tool, electric industrial, protective anddecoration of household electrical appliances.
Material strength is under 450N/mm2, material with elongationover 25%.
Expanded process is finished by crankshaft connecting rodsystem, moved by can ,feed by stepping motor, the feeding distance can beeasily adjusted. This machine has characteristics of structure, easy operationand steady performance.
Main technical parameters:
Model: TF-1.0-600
Max. Coil width: 600mm;
Thickness of steel coil: Max. 1.0mm;
Expanding speed: Max. 260-300 strokes/minute;
Motor power: 2.2KW;
Expanding force: 6.3T;
Overall size of machine(L*W*H):1280*600*1400mm
Overall of electric cabinet(L*W*H): 600*600*1270mm
Machine weight: 1.3 tons
Controlled by PLC+touch screen; Length calculate+automatic cutting
Typical application of expanded metal mesh:
